| Brand | MSI |
| Model | MSI PRO B760M-A (Wi-Fi 6E) |
| Memory Type | DDR5 |
| Memory MHz | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)MHz non-ECC & Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 192GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 192GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek ALC897 Codec |
| LAN Chipset | Realtek RTL8125BG 2.5G |
| WiFi | Available |
| Bluetooth | Bluetooth 5.3 |

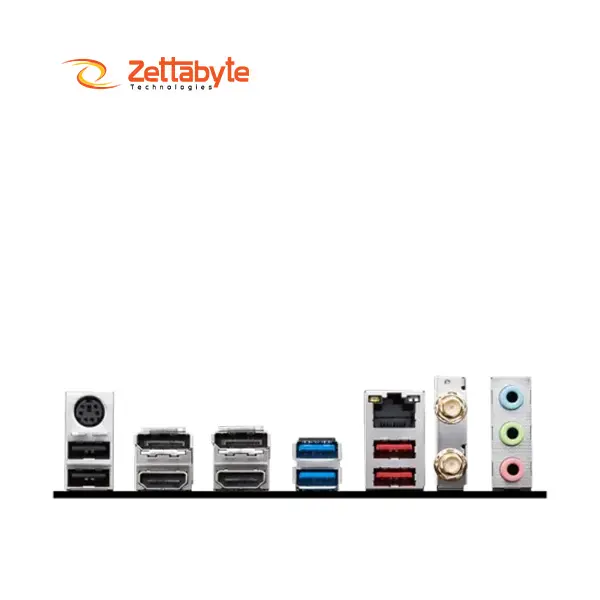

| USB Port | 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 2 x USB 3.2 Gen 2 Type-A |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 2 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Available |
| RGB Support | RGB |
| RGB Connector | 1 x RGB LED connector |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 11, 10 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

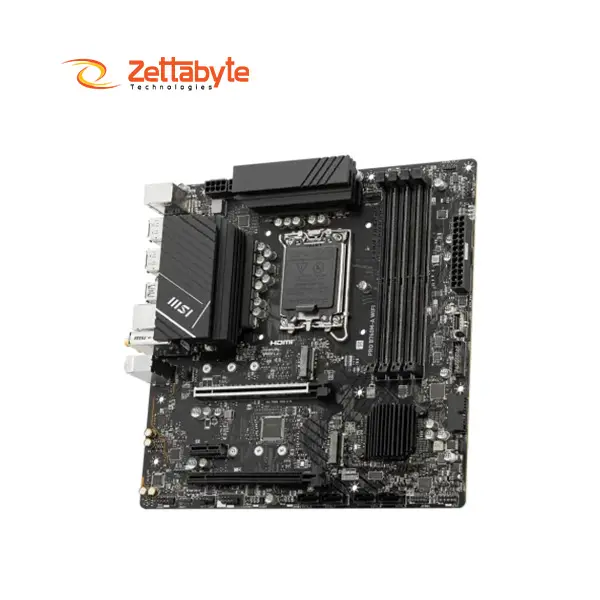

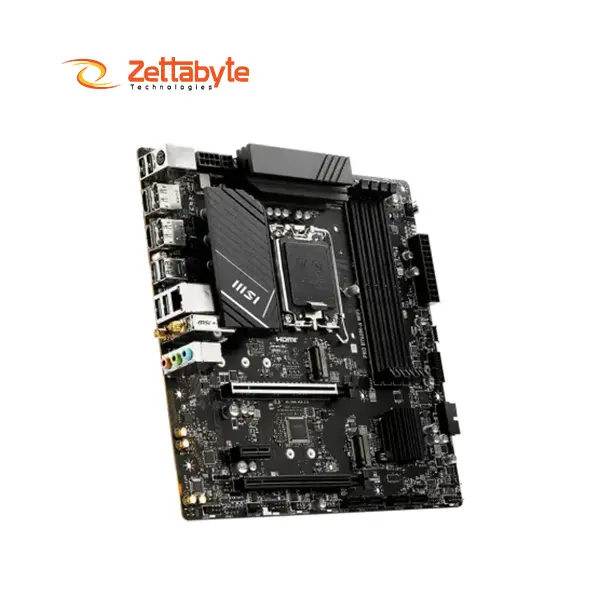

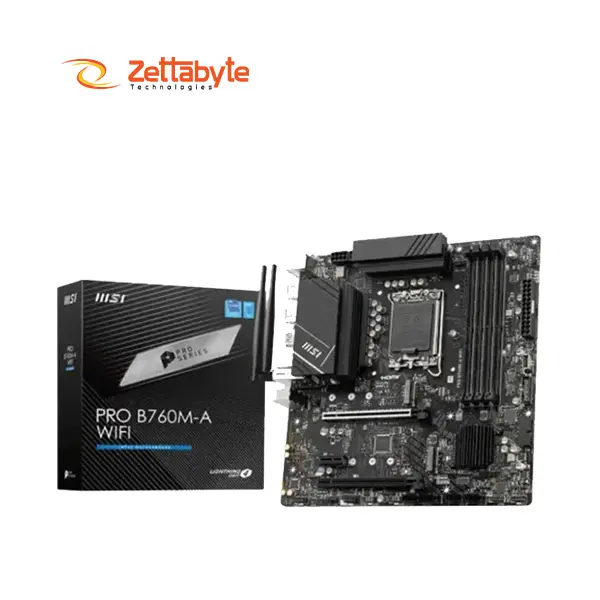

The MSI PRO B760M-A WIFI Micro-ATX Motherboard is compatible with 14th, 13th, and 12th Gen Intel processors with an LGA 1700 socket. It offers four DDR5 RAM slots supporting up to 192GB at 6800+MHz (OC) for optimal memory performance. There are two M.2 slots and four SATA III ports available for abundant storage options for users. This motherboard has lightning-quick connectivity through Intel Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN for wireless connectivity. Dual HDMI and DisplayPort outputs are available for 4K resolution at 60Hz for high-definition screens. For stable power, it features a 12+1 Duet Rail Power System, Core Boost, and Memory Boost tech. MSI Game Boost enables a one-second overclock for optimal performance. Advanced thermal designs, such as an Extended Heatsink Design and M.2 Shield Frozr, provide coolness under high loads.
With a strengthened PCB of 2oz thickened copper layers, the motherboard makes it more rugged and dissipates heat effectively. The PCIe Steel Armor slots provide sufficient support to large GPUs, not breaking the slots. Enabling a range of USB options, including USB 3.2 Gen2 Type-A & Type-C, the motherboard supports fast data transfer. Support for TPM 2.0 ensures it is secure and thus Windows 11 compatible. This motherboard comes with a 3-year warranty.
Are you looking for a reliable Technology Store in Bangladesh? Get the MSI PRO B760M-A WIFI Micro-ATX Motherboard from Zettabyte Technologies. We provide 100% Authentic products, the best price, and Home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. And enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the MSI PRO B760M-A WIFI Micro-ATX Motherboard is ৳19,100. We have a huge collection of MSI PRO B760M-A WIFI Motherboards at the best price. Order today before the price increases!
