| Brand | MSI |
| Model | MSI MAG B760M MORTAR II |
| Memory MHz | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory Channel | Dual |
| Memory Max | 192GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 192GB |
| M.2/SSD Expansion Slot Details | 3 x M.2 (1 x M.2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek ALC897 codec |
| LAN Chipset | Realtek RTL8125BG LAN |
| WiFi | Not Available |
| Bluetooth | Not Available |

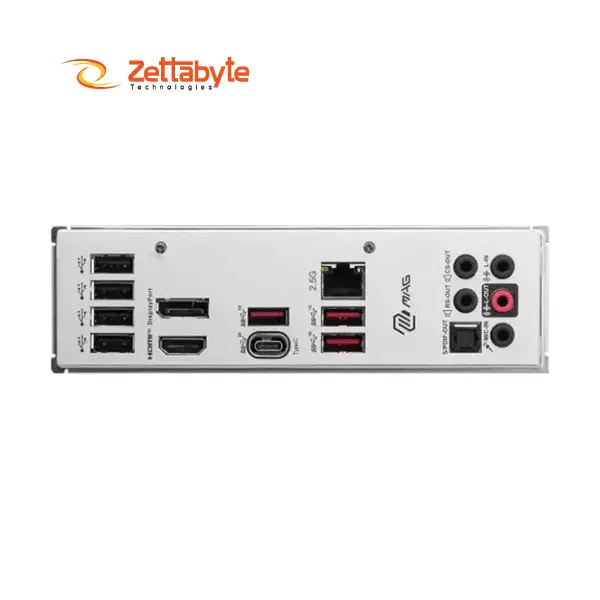

| USB Port | 4 x USB2.0 Type-A, 3 x USB3.2 Type-A, 1 x USB3.0 Type-C |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Available |
| RGB Support | RGB |
| RGB Connector | 1x RGB LED connector(JRGB) |
| Supported Operating System | Windows 11, Windows 10 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

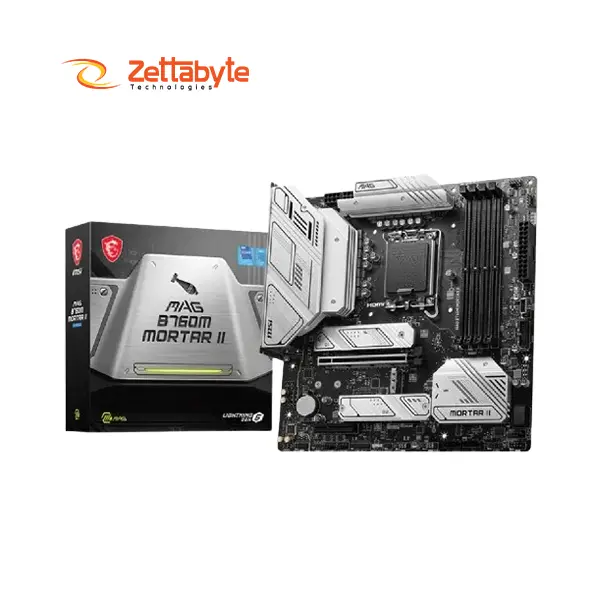

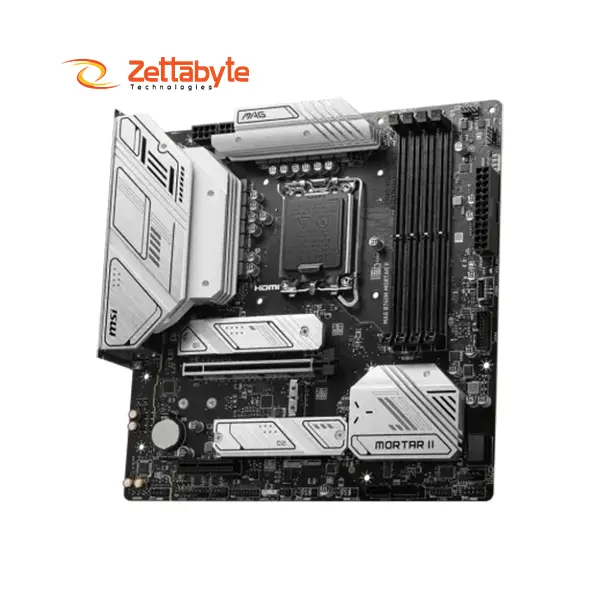

The MSI MAG B760M MORTAR II DDR5 mATX Motherboard, an ideal offer, is extended to gamers and PC enthusiasts, erecting a high-powered computer system. Built to support Intel's latest Core processors, 14th, 13th, and 12th Gen, the processing power takes a stand for stable operations provided by the Intel B760 chipset. The mATX form factor dimensions of 243.84mm x 243.84mm fit people who desire a compact but powerful build. It can support up to 192GB of DDR5 RAM, and the motherboard is engineered with a capability for blistering fast memory speed up to 7800MHz with overclocking. As for other features, the dual-channel memory architecture and the support for Intel XMP allow just-in-time high-performance memory management.
In terms of connectivity and expandability, the MSI MAG B760M MORTAR II DDR5 mATX Motherboard extends various options through three M.2 slots and four SATA 6Gb/s ports, allowing super-fast storage drives to work to the max for read/write performance. The motherboard can support RAID configurations 0, 1, 5, and 10, thus allowing flexible options for any chosen mode of data redundancy or performance. In addition, one gets the option to enjoy minimal lagging during gaming or media streaming with the Realtek 2.5 Gbps LAN for a wired internet connection. With all the USB ports, including USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 2 Type-A at the front and back, this motherboard facilitates swift data transfer. Besides these, HDMI offers 4K 60Hz, and DisplayPort offers 8K 60Hz video output on 1x HDMI 2.1 and 1x DisplayPort 1.4 interfaces that translate to multiple monitor setups.
With multiple interesting features aiding performance, the MSI MAG B760M MORTAR II DDR5 mATX Motherboard also smiles at the degree of user-friendliness it incorporates. Equipped with an EZ Debug LED, this motherboard makes the troubleshooting process easy, while RGB LED connectors have also been added so that you can fit customized lighting in your setup. The 3-year manufacturing warranty assures users of the reliability and durability of the MSI MAG B760M MORTAR II DDR5 mATX Motherboard over a long period. The MSI motherboard is thus going to be a suitable option for speed and expansion as well as durability for any gamer or high-performance workstation. For all your tech requirements, this great motherboard is offered by ZettaByte Technologies.
Are you looking for a reliable Technology Store in Bangladesh? MSI MAG B760M MORTAR II Powerful Memory Overclocking Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The MSI MAG B760M MORTAR II Efficient Cooling System Motherboard price is ৳21,800. We have a huge collection of MSI MAG B760M MORTAR II Motherboard at the best price. Order today before the price increases!
