| Brand | MSI |
| Model | MSI MAG B860M MORTAR (Wi-Fi 7) |
| Memory Type | DDR5 |
| Memory MHz | 9066 - 6400 (OC) MT/s/ 6400 - 4800 (JEDEC) MT/s |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 256GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B860 |
| Sockets Supported | LGA1851 |
| Built-in Processor | Not Available |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Generation | Ultra |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 256GB |
| M.2/SSD Expansion Slot Details | 3x M.2 (M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek ALC897 Codec |
| LAN Chipset | Intel Killer E5000 5Gbps LAN |
| WiFi | Available |
| Bluetooth | Bluetooth 5.4 |
| USB Port | 4x USB 2.0 Type-A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C, 1x Thunderbolt 4 40Gbps (Type-C) |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4x SATA |
| Cable Management | Front |
| Heatsink | Available |
| RGB Support | ARGB |
| RGB Connector | 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB) |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 11 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

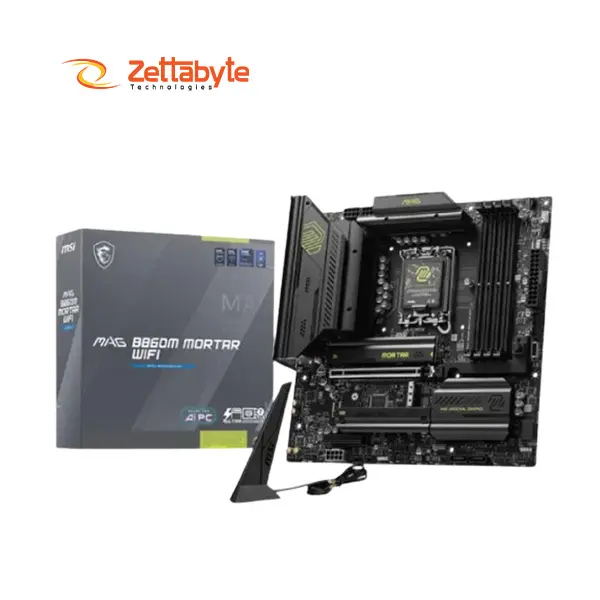

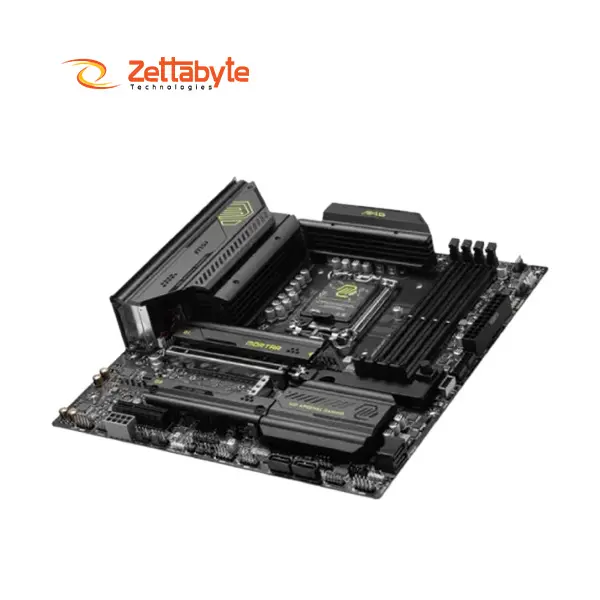

MSI MAG B860M MORTAR WIFI is an efficient mATX motherboard designed for Intel Core Ultra Processors (Series 2) featuring the LGA 1851 socket. It is specifically built for gamers, creators, and professionals who need DDR5 memory to operate at speeds of up to 9200+ MT/s (OC) with a maximum capacity of 256GB for super-speedy performance and multitasking efficiency. The board offers three M.2 slots with support for PCIe 5.0 x4 and PCIe 4.0 x4 to offer incredibly fast storage options. Four SATA 6G ports with RAID 0, 1, 5, and 10 support for offering secure and flexible storage options are available.

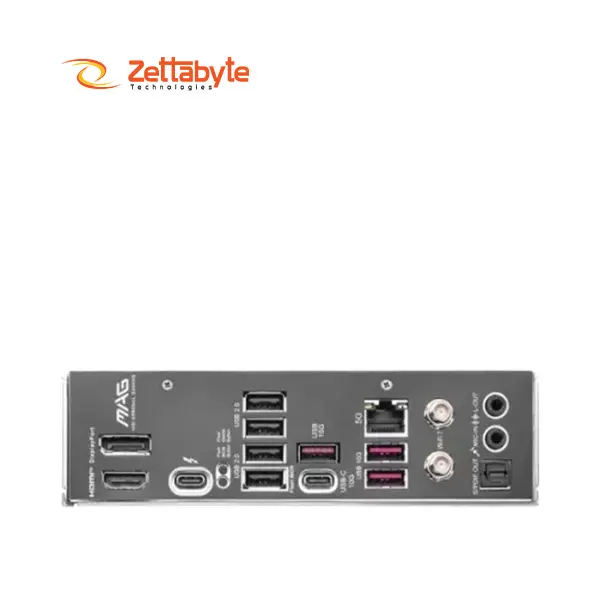

For seamless connectivity, an Intel Killer 5Gbps LAN and Wi-Fi 7 are included to offer low-latency and high-speed networks for use in games and streaming. Bluetooth 5.4 is also available for efficient wireless device connectivity. For display output, there's HDMI 2.1, DisplayPort 1.4, and a Type-C DisplayPort onboard, along with resolutions of up to 8K@60Hz or 4K@120Hz for the best experience. Expansion slots are comprised of PCIe 5.0 x16 and PCIe 4.0 x4, which offer excellent support for graphics cards and other cards.
Thermal performance is maximized with Frozr Guard technology, MOSFET thermal pads, and an EZ M.2 Shield Frozr II for optimal cooling and stability. Audio is powered by the Realtek ALC897 7.1-channel codec, offering high-definition sound quality for an enhanced multimedia experience. With a 3-year warranty, the MSI MAG B860M MORTAR WIFI is a solid, reliable, and future-proof option for high-performance computing.
Are you looking for a reliable Technology Store in Bangladesh? Get the MSI MAG B860M MORTAR WIFI LGA 1851 mATX Gaming Motherboard from Zettabyte Technologies. We provide 100% Authentic products, the best price, and Home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. And enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the MSI MAG B860M MORTAR WIFI LGA 1851 mATX Gaming Motherboard is ৳32,000. We have a huge collection of MAG B860M MORTAR WIFI Products at the best price. Order today before the price increases!
