3800 Lumens High Brightness
XGA (1024x768) Resolution
300" Max Screen Size
HDMI, VGA & USB Ports
| Brand | ViewSonic |
| Model | ViewSonic PA503X |
| Display Type | DLP Display |
| Display Resolution (Pixels) | XGA (1024x768) |
| Max. Supported Resolution | 1024 x 768 |
| Light Output (lumens) | 3800 Lumens |
| Contrast Ratio | 22,000:1 |
| Display Color | 1.07 Billion |
| Color Depth | 10bit |
| Throw Ratio | 1.96 - 2.15 |
| Throw Ratio Range | 1.96~2.15 |
| Native/Compatible Aspect Ratio | 4:3 |
| Projection Offset | 120% +-5% |
| Color Brightness | 3800 Lumens |
| Min. Projection Distance | 1.19 Meter |
| Max. Projection Distance | 13.11 Meter |
| Min. Image/Screen Size (Inch) | 30 Inch |
| Max. Image/Screen Size (Inch) | 300 Inch |
| Projection Lens | 1.1x Optical Zoom |
| Keystone Correction | Vertical +/- 40 degrees |
| Light Source (Watt) | 190Watt |
| Light Source Type | Lamp |
| Light Source Life Hours (Normal) | 5000 Hours |
| Light Source Life Hours (Economy) | 15000 hours |
| Input Source | HDMI, VGA & Audio |
| Inputs | HDMI, VGA, AUDIO |
| HDMI | 1 |
| VGA/D-Sub | 1 |
| USB | 1 x USB Type Mini B |
| Audio | 1 x 3.5mm Audio Out/in |
| Memory Card Slot | Not Available |
| LAN | Not Available |
| Speaker | 1 x 2W |
| Integrated Speaker | Yes |
| Watts Per Channel | 2Watt |
| Remote Control Included | Yes |
| Operating System | Unmentioned |
| Color | White |
| Dimensions | 294 x 110 x 218mm |
| Weight (gm) | 2.2 Kg |
| Weight (Kg) | 2.2 Kg |
| Operating System | Unmentioned |
| Approx_Power_Consumption | 260 W |
| Approx. Power Consumption | 260 W |
| Country Of Origin | USA |
| Made in/ Assemble | China |
| Warranty Details | 2 year (1st Year Parts, 2nd Year Service) (Lamp 12 Month/1000 Hours Which One Comes First) |

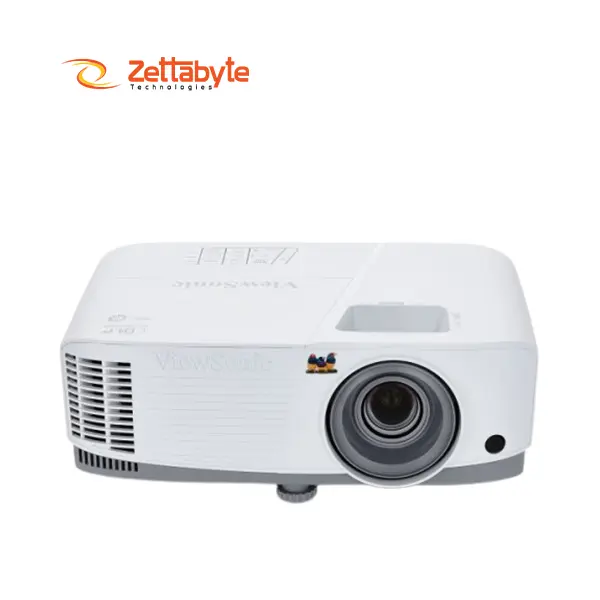

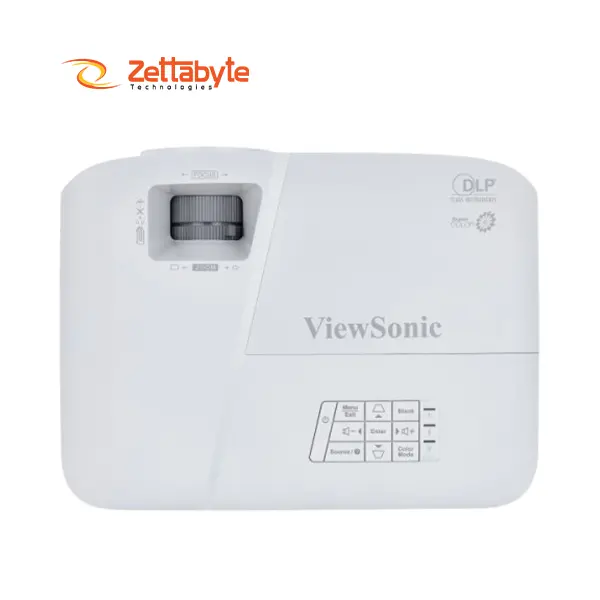

ViewSonic PA503X XGA Business Projector is a high-end, multi-purpose projector that can display clear, vibrant pictures ideal for professional and academic use. With its enormous 3800 lumens of brightness, this projector can display exceedingly bright images irrespective of the ambient lighting in the room, which makes it ideal for application in business presentations, classrooms, and small-scale events.
The XGA resolution of 1024x768 delivers crisp picture clarity and sharp text, making presentations, spreadsheets, and multimedia presentations even more stunning. With DLP display technology, the PA503X delivers smooth, high-quality video playback and rich colors with 22,000:1 contrast ratio—whether blacks are rich or whites are radiant.The projector accommodates screen sizes of 300 inches or more, while having a maximal projection distance of 13.11 meters and easy installation capability for different rooms of sizes. The projector contains a 1.1x optical zoom with ±40° vertical keystone correction to assist with easy setup and image orientation.

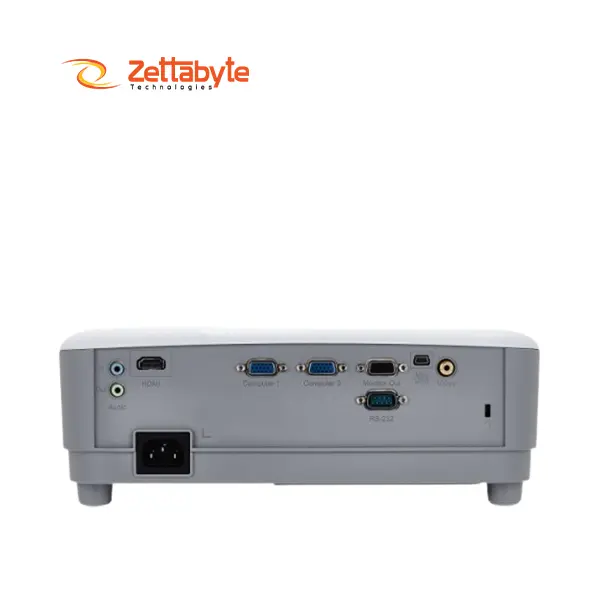

Connectivity is simple with HDMI, VGA (D-sub), and USB Type Mini B ports for laptop, desktop, and other multimedia device support. The onboard 2W speaker delivers good sound output in small-sized rooms, and the 3.5mm audio in/out jack enables connection to external audio systems for a better sound experience. Power efficiency is yet another highlight feature, with approximately 260W consumption, and lamp life prolonged to a maximum of 15,000 hours in SuperEco mode, the PA503X reduces overall cost of ownership and maintenance. The projector supports universal voltage input (AC 100–240V) and comes with a remote control for convenient use.
The small and lightweight design (2.2kg, 294 x 110 x 218mm) simplifies it to move about and transport conveniently. From running boardroom meetings to training sessions, ViewSonic PA503X is a great solution designed for reliable quality.
Are you Looking for a reliable Technology Store in Bangladesh? Get the ViewSonic PA503X XGA 3800 Lumens Business Projector from Zettabyte Technologies. We provide 100% Authentic products, best price, and Home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. And enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the ViewSonic PA503X XGA 3800 Lumens Business Projector is ৳44,800. We have a huge collection of ViewSonic PA503X Products at the best price. Order today before the price increases!
