| Brand | Huawei |
| Model | Huawei S220-48P4X |
| Number of Total Port | 52 Port |
| SFP Port | Not Available |
| PoE Port | 48 |
| PoE | Available |
| Manageability | Managed |
| Interface(s) | 48 x 10/100/1000Mbps PoE+, 4 x 10GE SFP+ |
| Data Transfer Rate | 10/100/1000 Mbps |
| Memory | 2GB |
| Connector Type | 48 x 10/100/1000 Mbps RJ45, 4 x 10/100/1000Mbps SFP+ |
| MTBF | 421995.24 Hours |
| Type | Network Switch |
| Fan/Fanless | Fan |
| Indicators | PWR, SYS (Steady on, Fast blinking, Slow blinking), PoE (Steady on), CLOUD (Fast blinking, Slow blinking) |
| Packet Contents | Huawei S220-48P4X Switch, User Manual, Warranty Card |
| Power Supply | 100 V AC to 240 V AC, 50/60 Hz, High-voltage DC input: 240 V DC |
| Body Color | White |
| Dimensions | 43.6 x 442 x 220mm |
| Weight (Kg) | 3.24 Kg |
| Body Material | Metal |
| Form Factor | 1U Rack-mountable |
| Approx_Power_Consumption | 49.44 W (Typical), Without PoE: 64.7 W, Full PoE load: 462.80 W (PoE: 380 W) (Max.), 34.04 W (Static) |
| Country Of Origin | China |
| Made in/ Assemble | China |
| Warranty Details | 1 Year (Without Adapter) |

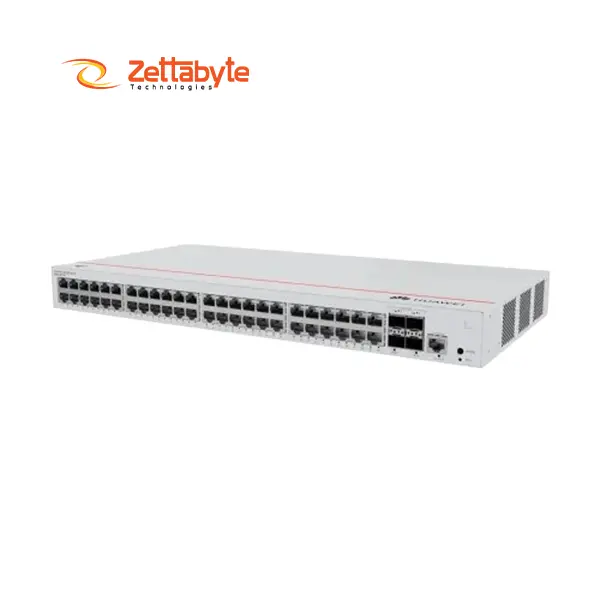

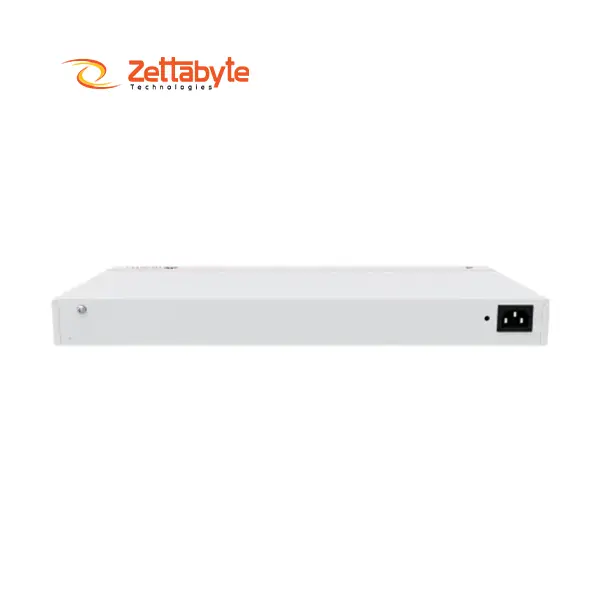

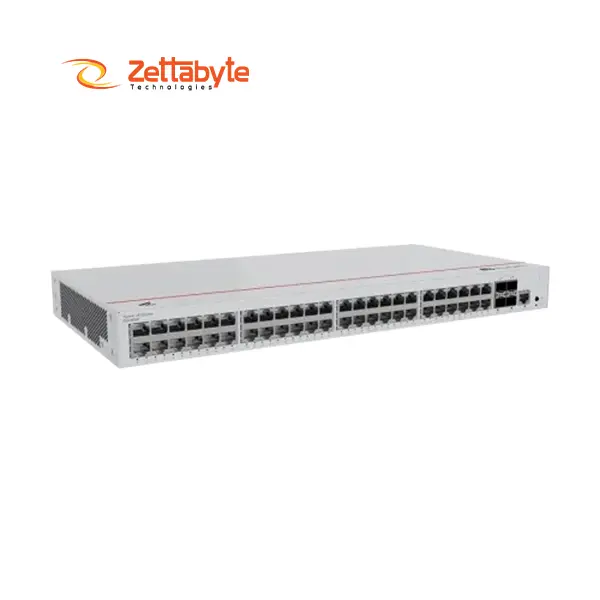

Huawei eKitEngine S220-48P4X is an enterprise-grade and highly scalable WEB-managed switch for PoE+ expansion in support of enterprise-grade networks. Equipped with 4 x 10GE SFP+ uplinks, the 48-port Gigabit PoE+ switch is a perfect solution for expanding enterprise networks, surveillance networks, or data center infrastructure supporting fast and consistent data transmission.It comes with 48 Gigabit PoE+ ports with a combined PoE power budget of 380W to deliver full load power of up to 462.80W, which can supply power to any number of the PoE-supported devices like VoIP phones, IP cameras, and wireless access points. Four 10GE SFP+ uplink ports provide high-speed data transfer and interruption-free backbone connectivity.
Advanced Switching Performance
With its stunning 176 Gbps switching capability and 131 Mpps forwarding rate, S220-48P4X offers silky-smooth network throughput under constant load. It's in demanding high-bandwidth applications such as smart offices, surveillance networks, and campus institutions.Sustainably built, the switch is designed with IP20 ingress protection rating, dust protected. It also features high surge and voltage spike immunity: ±7 kV on service ports and ±6 kV on power supplies.
Noise Optimization and Memory Specs
The S220-48P4X has its acoustic power configured at 49.3 dB(A) so that it can be as silent as possible and be used in an office or control room environment. It also comes equipped with 2 GB of RAM and 1 GB flash memory, which enables effective and timely management of the network.
Are you Looking for Best IT solution Provider in Bangladesh? Get the Huawei eKitEngine S220-48P4X 48 Port Gigabit PoE WEB-Managed Switchfrom Zettabyte Technologies. We provide 100% Authentic products, best price, and Home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. And enjoy peace of mind with our 14-day return policy . Order now and experience the Zettabyte difference.
The current price of the Huawei eKitEngine S220-48P4X 48 Port Gigabit PoE WEB-Managed Switch is ৳101,000. We have a huge collection of Huawei eKitEngine S220-48P4X at the best price . Order today before the price increases!
