| Brand | Gigabyte |
| Model | Gigabyte Z890 AORUS MASTER (Wi-Fi 7) |
| Part No | Z890 AORUS MASTER |
| Memory Type | DDR5 |
| Memory MHz | 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules non-ECC Un-buffered DIMM |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 256GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel Z890 |
| Sockets Supported | LGA1851 |
| Built-in Processor | Not Available |
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| Generation | Ultra |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 256GB |
| M.2/SSD Expansion Slot Details | 5 x M.2 (1 x M.2, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)), (1 x M.2, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU), (1 x M.2, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU), (1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), (1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)) |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek ALC1220 CODEC |
| LAN Chipset | Marvell AQtion AQC113C 10GbE LAN chip |
| WiFi | Available |
| Bluetooth | Bluetooth 5.4 |

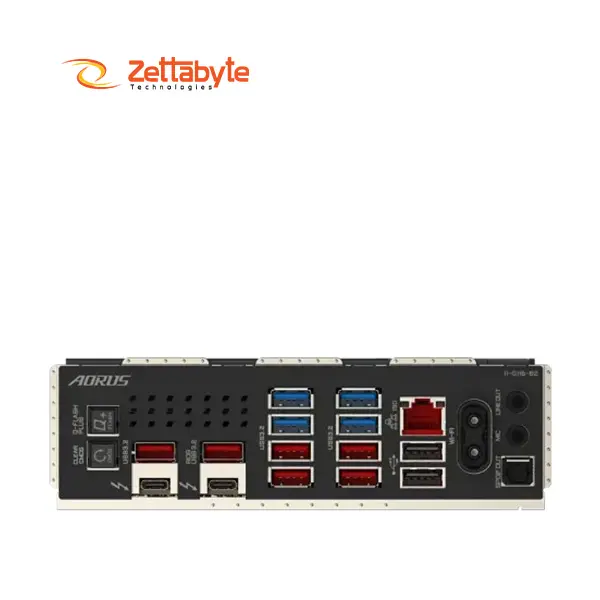

| USB Port | 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), 6 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | Not Available |
| SATA Port | 4 |
| Cable Management | Front |
| Heatsink | Available |
| RGB Support | RGB |
| RGB Connector | 1 x RGB LED strip header |
| Approx. Power Consumption | 70W |
| Form Factor | ATX |
| Supported Operating System | Windows 11 |
| Body Color | Black |
| Form Factor | ATX |
| Approx. Power Consumption | 70W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

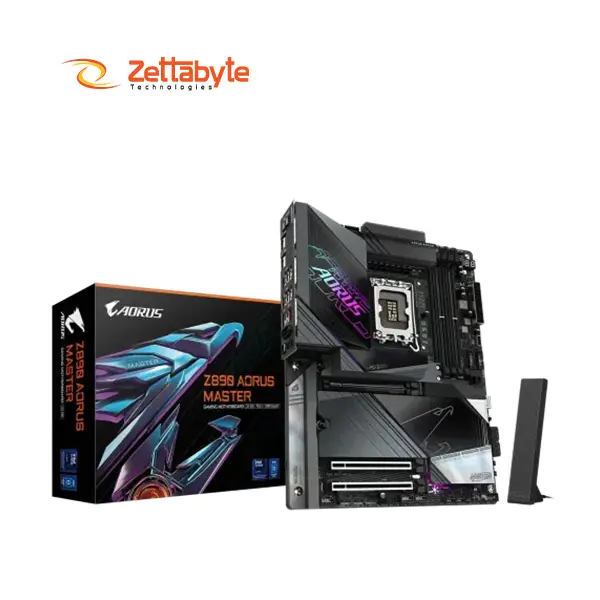

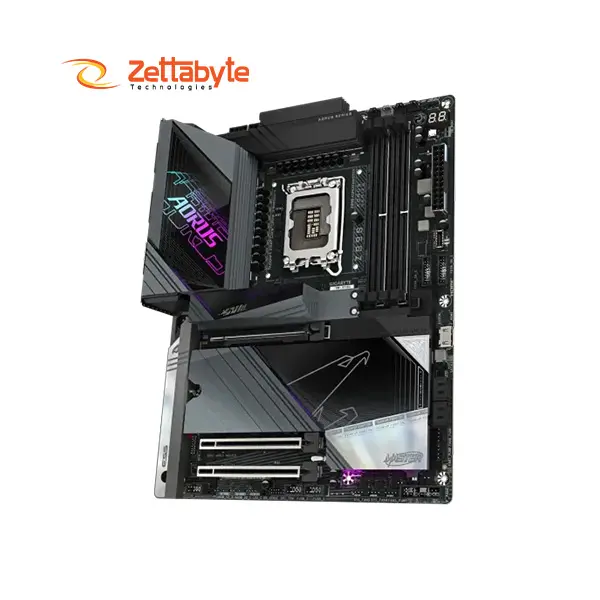

The Gigabyte Z890 AORUS Master DDR5 Wi-Fi 7 Motherboard has been designed to suit the needs of high-performance systems- either gaming, content creation, or enthusiast builds. The motherboard is one such product that is built for exceptional speed, connectivity, and expansion. Its working with the Intel Z890 Express Chipset helps support Intel Core Ultra Processors with LGA1851 sockets. Additionally, there is support for multitasking and seamless processing capabilities provided with the DDR5 memory, where speeds reach up to 9500MHz (O.C.). With the 4 DIMM sockets, it configures the total system memory to 256GB. It suits best to professionals and hardcore gamers who need superior performance. It supports Extreme Memory Profile (XMP) modules, thus improving overclocking potential.
Connectivity-wise, the Z890 AORUS Master is one of the best. With Intel Wi-Fi 7 BE200NGW, super fast wireless internet access from supporting standards like 802.11a, b, g, n, ac, and ax, all of which would cover several frequency bands of 2.4/5/6 GHz. Of course, wired connectivity should be the Marvell AQtion AQC113C 10GbE LAN chip, which is able to state delivery speeds up to 10 Gbps, satisfying the demand for high-speed internet access for heavy data transfers, online gaming, and streaming of media. Two Intel Thunderbolt 4 USB Type-C ports are on the motherboard, which provides very fast data transferring rates of up to 40Gbps and also support DisplayPort 2.1 and HDMI 1.4 connectivity for a versatile setup of displays.
The motherboard is also rich in terms of expansions and storage capabilities. It packs as many as five M.2 slots plus up to four SATA 6gb/s connectors for the installation of multiple high-speed NVMe SSDs and SATA drives for ultimate storage flexibility. Also provides RAID 0, 1, 5, and 10 to ensure the redundancy of data along with better performance in workloads critical in nature. Adding to the luxurious Realtek ALC1220 CODEC with ESS ES9118 DAC chip ensures that users dependably have access to the highest quality audio possible in their machines while also supporting DSD audio and DTS:X Ultra for truly immersive sound experiences. This motherboard is really for people who constantly want both performance and reliability.
This is the best choice for high-performance setups with excellent connectivity, great audio, and future-proof expandability. Here at ZettaByte Technologies, we stock this kind of premium motherboard and many others for derivation by enthusiasts looking to take their systems to the next level.
Are you Looking for a reliable Technology Store in Bangladesh? Get the Gigabyte Z890 AORUS Master Wi-Fi 7 DDR5 Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the Gigabyte Z890 AORUS Master Wi-Fi 7 PCIe 5.0 Motherboard is 79,800৳. We have a huge collection of the Gigabyte Z890 AORUS Master Motherboard at the best price. Order today before the price increases!
