| Brand | Gigabyte |
| Model | Gigabyte X870E AORUS MASTER (Wi-Fi 7) |
| Part No | X870E A MASTER |
| Memory Type | DDR5 |
| Memory MHz | 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules non-ECC Un-buffered DIMM |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 256GB |
| Optane Memory Support | Not Available |
| Chipset Brand | AMD |
| Chipset | AMD X870E |
| Sockets Supported | AM5 |
| Built-in Processor | Not Available |
| Supported CPU | AMD Ryzen 9000 Series/ AMD Ryzen 8000 Series / AMD Ryzen 7000 Series Processors |
| Generation | Not Applicable |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 256GB |
| M.2/SSD Expansion Slot Details | 4 x M.2 (1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs, 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs, 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs) |
| Graphics | Integrated |
| Graphics Chipset | AMD Radeon Graphics support |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek ALC1220 CODEC |
| LAN Chipset | Realtek 5GbE LAN chip |
| WiFi | Available |
| Bluetooth | Bluetooth 5.3 |
| USB Port | 2 x USB4 USB Type-C ports (DisplayPorts (Note)), 4 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 |
| Cable Management | Front |
| Heatsink | Available |
| RGB Support | ARGB |
| RGB Connector | 1 x RGB LED strip header |
| Approx. Power Consumption | 70W |
| Form Factor | ATX |
| Supported Operating System | Windows 11 |
| Body Color | Black |
| Form Factor | ATX |
| Approx_Power_Consumption | 70W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

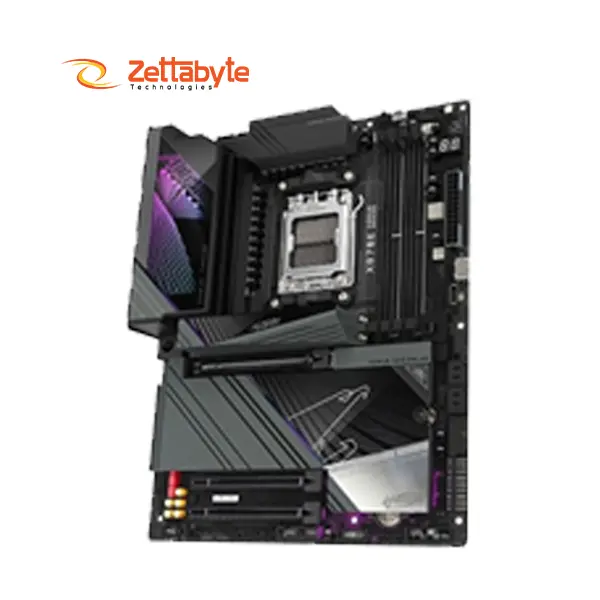

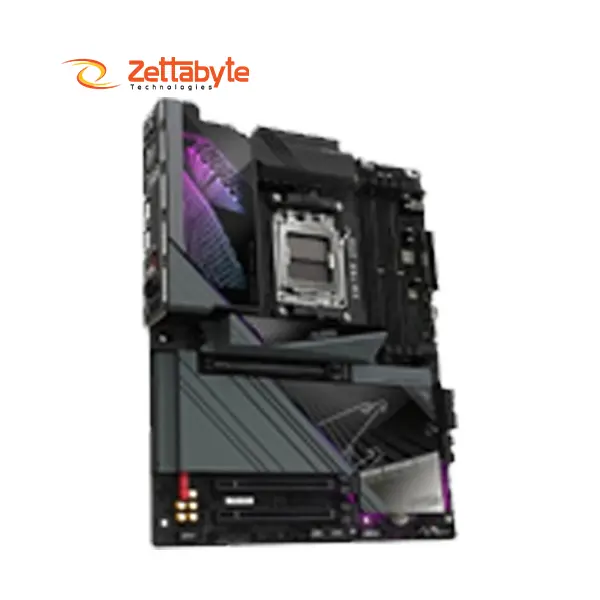

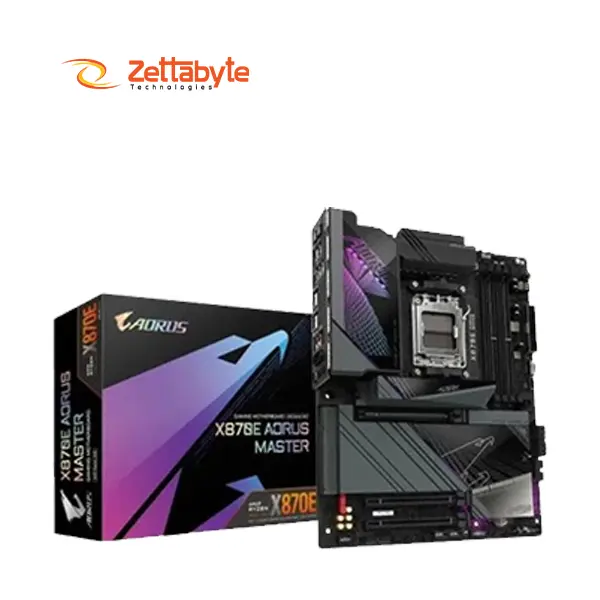

The GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard is built for high-performance computing for gaming, content creation, and professional workloads. These AM5 motherboards that take in AMD Ryzen™ 9000, 8000, and 7000 Series processors deliver high processing performance along with tremendous stability. With four DDR5 DIMM slots supporting up to 256GB of system memory ,boasting lightning speeds of up to 8600MT/s (overclocked), this motherboard is well deserving for resource-intensive applications. This motherboard is fully compatible with AMD EXPO™ memory modules that would enhance performance and stability while being suited for overclocking and demanding workload applications.
For connectivity, the GIGABYTE X870E AORUS MASTER is equipped with two USB4 Type-C ports with DisplayPort video output and an HDMI port for online gaming and rapid file transfer through Realtek 5GbE LAN. The Qualcomm Wi-Fi 7 module delivers a blazing-fast wireless connection with low latency for all streaming and multitasking purposes. With four M.2 slots supporting PCIe 5.0 x4 plus four SATA 6Gb/s ports, this motherboard has splendid high-speed storage options. RAID support for RAID 0/1/5/10 enhances data security and system performance; thus, this becomes a viable option for professionals managing large data loads.
With advanced cooling technologies such as VRM Thermal Armor, DDR Wind Blade, and I/O ZONE, the motherboard guarantees stable performance under heavy workloads. An EZ-Latch Plus system for PCIe and M.2 slots ensures easy installation, and M.2 EZ-Match magnetic alignment further simplifies the building. A modern BIOS interface with many customization options helps the end-user gain more control and efficiency over their systems. Considered in the engineering design are gamers, creative professionals, and power users. A powerful combination of speed, stability, and flexibility lives up to the name GIGABYTE X870E AORUS MASTER. Buy with Zettabyte Technologies.
Are you Looking for the Best IT Solution Provider in Bangladesh? Get the GIGABYTE X870E AORUS MASTER DDR5 Motherboard from Zettabyte Technologies. We provide 100% Authentic products, best price, and Home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the GIGABYTE X870E AORUS MASTER DDR5 AM5 ATX Motherboardis ৳68,000. We have a huge collection of GIGABYTE X870E AORUS MASTER at the best price. Order today before the price increases!
