| Brand | Gigabyte |
| Model | Gigabyte GP-UD1000GM PG5 |
| Type | ATX 12V |
| Series | PG5 |
| PSU Category | Full Modular |
| Fan Size | 120mm |
| Lighting Effect | Not Available |
| Lighting Type | Not Available |
| Fan Bearing | Hydraulic Bearing |
| Efficiency | 90% Efficiency |
| Efficiency Rating | 80 Plus Gold |
| PFC (Power Factor Correction) | Active PFC (>0.9 typical) |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Over Voltage Protection (OVP) | Yes |
| Under Voltage Protection (UVP) | Yes |
| Over Power Protection (OPP) | Yes |
| Over Current Protection (OCP) | Yes |
| Over Temperature Protection (OTP) | Yes |
| Short Circuit Protection (SCP) | Yes |
| ATX Main Connectors | 1 |
| EPS Connectors | 2 |
| PCIe Connectors | 5 |
| SATA Power Connectors | 8 |
| 4-Pin Peripheral Connectors | 3 |
| Floppy Connectors | 1 |
| Min. Power (Approx.) | 900W |
| Maximum Power | 1000 Watt |
| Input AC | 100-240 Vac, 15-6.5A, 60-50 Hz |
| Input Voltage | 100-240 Vac |
| Input Frequency Range | 60-50 Hz |
| Input Current | 15-6.5A |
| Peak Output Capacity | 1000W |
| Cable Type | Flat, All black |
| MTBF | >100000 Hours |
| Color | Black |
| Dimensions | 150 x 140 x 86mm |
| Form Factor | ATX |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 10 year |

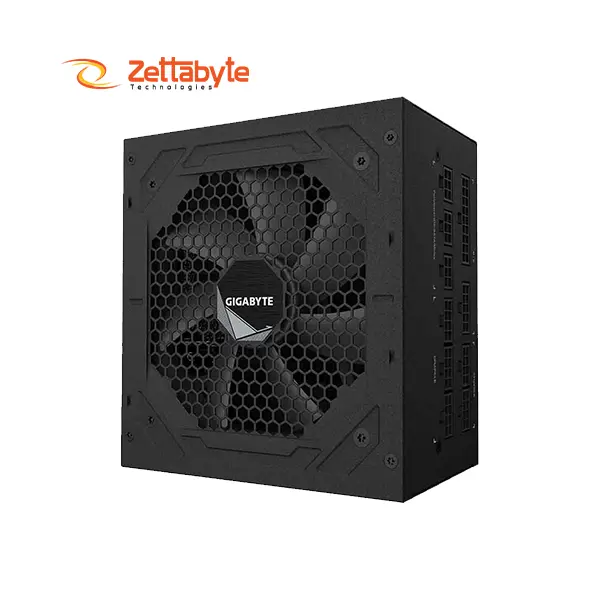

The Gigabyte GP-UD1000GM PG5 1000W PSU is a top-tier power supply solution that is designed to cater to high-grade systems. This Gigabyte PSU is fully modular and works based on 80 Plus Gold-certified standards that can provide 90% efficiency, delivering stable and energy-efficient performance. This unit, which is capable of outputting a maximum of 1000W, supports the new PCIe Gen 5.0 graphics cards. All done through a native 16-pin cable that can provide up to 600W, this model is aimed at gamers, creators, and professionals requiring very high power delivery. To take things further regarding durability and thermal management, the unit is also built with Japanese capacitors, a smart hydraulic-bearer 120mm fan, and active PFC.

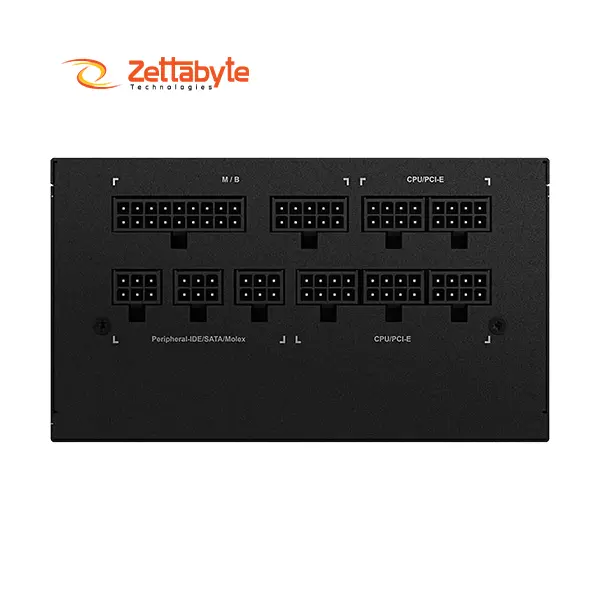

Just in case you missed its other features, this Gigabyte PSU has everything from OVP to OCP and OTP—this way ensuring that you will be safeguarded against power troubles that can ruin your valued component. The flat black modular cables are very helpful in excellent cable management, and this compact ATX form factor (150 x 140 x 86mm) makes it compatible with a wide range of cases. An MTBF of more than 100,000 hours and a 10-year warranty mean reliability for users over long periods. No matter if the purpose for which you need a power supply is to build a strong workstation or a gaming powerhouse, the Gigabyte GP-UD1000GM PG5 will provide everything you need. For more high-quality PSUs, you can visit ZettaByte Technologies—the trusted partner for reliable computing components.
