| Brand | Canon |
| Model | Canon imagePROGRAF TC-20 |
| Type | Ink Tank |
| Series | imagePROGRAF |
| Functions | Print Only |
| Print Speed (Black) | 1.87ppm/ 32 sec, CAD Drawing - (Draft) |
| Print Speed (Color) | 1.87ppm/ 32 sec, CAD Drawing - (Draft) |
| Print Resolution (Pixel) | 2400 x 1200 dpi |
| Paper Width | Roll Width: 297 - 610 mm (A3 width to 24 inch), Cut Sheet Width: 210 - 297 mm (A3, A4, Letter) |
| Paper Thickness | 0.08 ～ 0.28 mm |
| OS Compatibility | Not Available |
| Power Source/ Power Consumption | AC 100 - 240 V, 50 - 60 Hz |
| Interface (Built-in) | USB, LAN, WiFi |
| Printer Type | Single Function Large Format Printer |
| Output Color | Color |
| Print Technology | Ink |
| Printer Resolution (Black) | Not Available |
| Printer Resolution (Color) | 2400 x 1200 dpi |
| Duplex Print | Manual |
| Standard Print Languages | SG Raster (Swift Graphic Raster) |
| Photo Printing | Available |
| Scanner Type | Not Available |
| Print Paper Size Minimum | A4 |
| Print Paper Size | A1, A2, A3, A4 |
| Print Paper Size Max. | A1 |
| Print Paper Size Max. (Inch) | 23.4 x 33.1 |
| Duplex Print Paper Size Max. | A1 |
| Paper Weight | 80 to 230 gsm |
| Paper Handling | Roll Paper - One Roll, Top Load, Front Output, Cut Sheet - Top Load, Front Output, Media Width (Roll / Cut Sheet) - Roll Width: 297 ~ 610 mm (A3 width to 24 inch); Cut Sheet Width: 210 - 297 mm (A3, A4, Letter), Media Thickness (Roll / Cut Sheet) - 0.08 - 0.28 mm, Media Core Size - 2 inch core, Max. Printable Length - Roll Paper - 4 m, Cut Sheet - 432 mm. |
| Display Screen | Available |
| Display | LCD (2.7 inch/6.7 cm) (Touch Screen, Color) |
| Networking. | LAN, WiFi |
| Network Protocol | IEEE 802.3 10base-T , IEEE 802.3u 100base-TX , SNMP, HTTP, TCP/IP (IPv4/IPv6) , IEEE802.11b/g/n , WPA-PSK (TKIP/AES) , WPA2-PSK (TKIP/AES) , WPA3-SAE (AES) , WPA-EAP (AES)*2 , WPA2-EAP (AES)*2 , WPA3-EAP (AES)*2 . |
| Consumable Type | Ink Cartridge |
| Body Color | Black & White |
| Dimensions | 968 × 545 × 395 mm |
| Weight (gm) | 43 kg |
| Country Of Origin | Japan |
| Made in/ Assemble | Vietnam / Thailand (or Country may vary by Shipment) |
| Warranty Details | 1 Year Service (Without Adapter) (Box Mandatory While Claiming) |

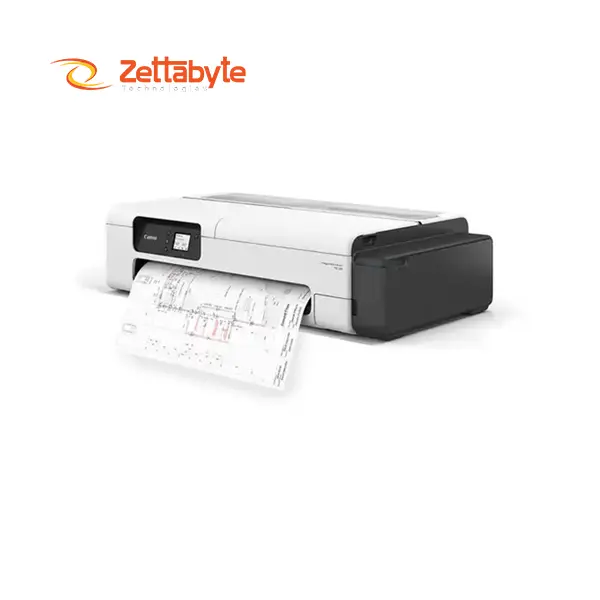

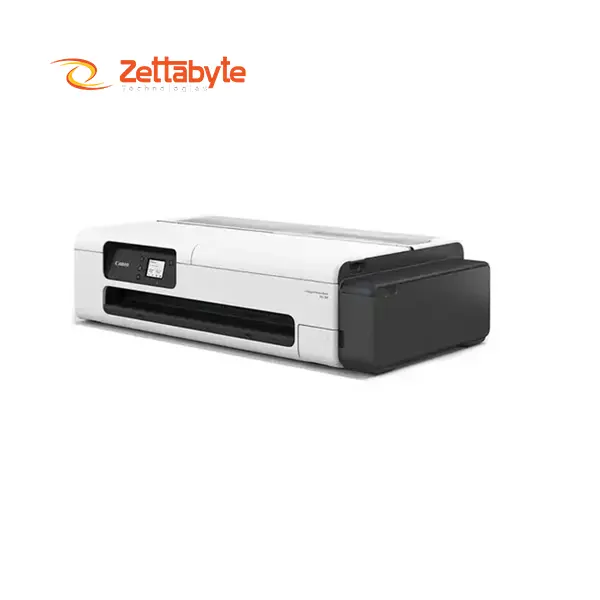

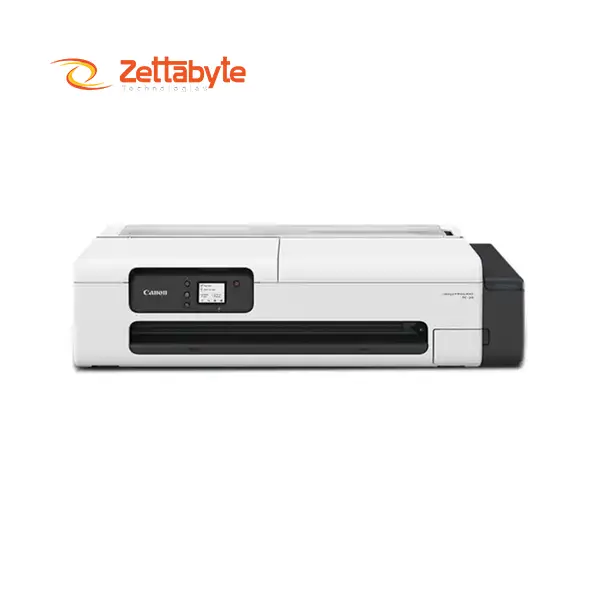

The Canon imagePROGRAF TC-20 Large Format Printer for printing is ideal for architects, engineers, and creative professionals who require precision and high-quality results in their large-format prints. This is a single-function printer that provides up to the resolution of 2400 x 1200 dpi which means letting anyone get very sharp, vibrant, and detailed outputs and is used especially in making CAD drawings, posters, and marketing materials. In an A1-sized CAD drawing, it takes just 32 seconds to do this fully (Draft Mode).
Often operating using 1GB RAM, thus allows high-resolution graphics and complex designs to have smooth operation without maximum overload or full stands. For example, it is equipped with USB-B, RJ45, and Wi-Fi, thus supporting Cannon imagePROGRAF TC-20 in office and remote work environments. It consumes only 28W when printing and reduces operational costs to as low as 1.8W in sleep mode. Offers economical ink color printing with PFI-050: cost-effective high-quality color printing with 70ml per bottle, Black, Cyan, Magenta, and Yellow. Its 43kg weight makes it space-saving and compact because it features an auto sheet feeder. At ZettaByte Technologies, the Canon imagePROGRAF TC-20 is available as a fully reliable printer which is assured by 1-year warranty (excluding print head & adapter).
We have an entire collection of Canon printers. Get the Canon imagePROGRAF TC-20 printer from Zettabyte Technologies, available across Bangladesh. Zettabyte will provide you with the best support after the sale.
The latest price of the Canon imagePROGRAF TC-20 Large Format Printer is 98,000৳. You can purchase the Canon Printer with the best discount price from our website or visit our nearest showrooms.
