| Brand | Asrock |
| Model | ASRock B760 Pro RS/D4 |
| Memory Type | DDR4 |
| Memory MHz | 5333+(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 128GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors. |
| Generation | 12th/13th/14th |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| M.2/SSD Expansion Slot Details | 4 x M.2 Slots (1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2, 1 x Hyper M.2 Socket M2-1 Key M type 2260/2280 supports PCIe Gen4x4, 1 x M.2 Socket Key M type 2260/2280 supports PCIe Gen4x2 (32 Gb/s) mode, 1 x Hyper M.2 Socket Key M type 2260/2280 supports PCIe Gen4x4 (64 Gb/s) mode |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Supports AMD CrossFire |
| Audio Chipset | Realtek ALC897 Audio Codec, Nahimic Audio |
| LAN Chipset | Dragon 2.5G LAN |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 1 x USB 3.2 Gen 1 Type-C, 5 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Available |
| RGB Support | RGB |
| RGB Connector | 2 x RGB LED Headers, 2 x Addressable LED Headers |
| Approx. Power Consumption | 70W |
| Form Factor | ATX |
| Supported Operating System | Windows 10 / 11 |
| Body Color | Black |
| Form Factor | ATX |
| Approx_Power_Consumption | 70W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

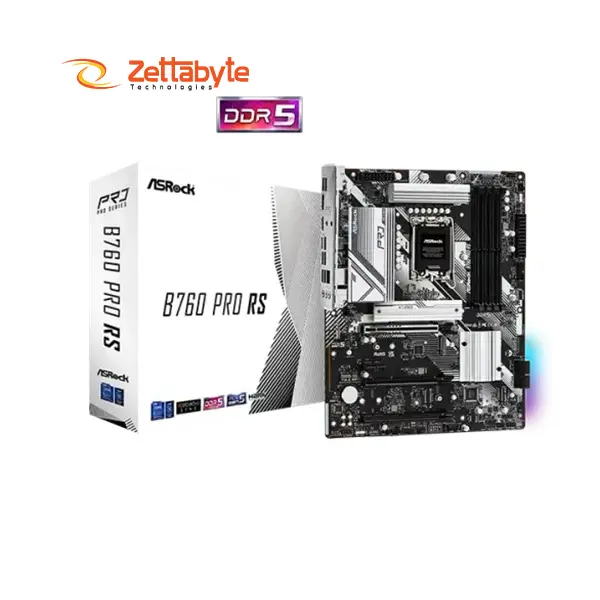

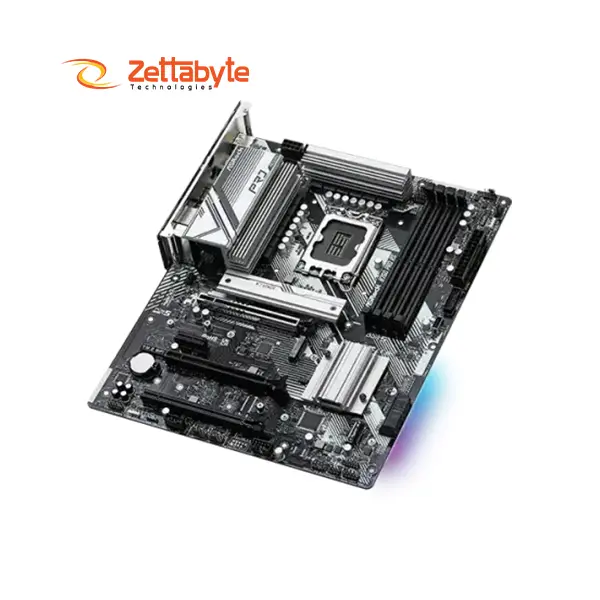

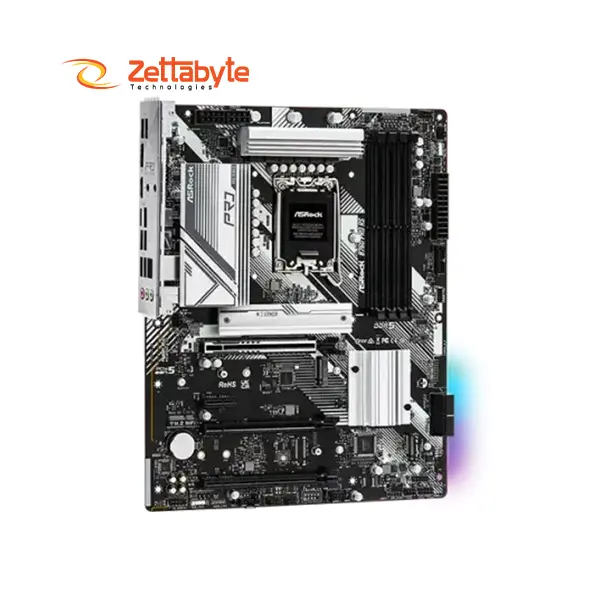

The ASRock B760 Pro RS Powerful DDR5 Support Motherboard is designed to help gamers, creators and PC enthusiasts experience the ultimate in performance and reliability. Built with the latest B760 chipset from Intel, this ASRock motherboard provides support for 14th, 13th and 12th Gen Intel Core processors with socket LGA1700. Built with strong DDR5 memory and support for 7200+ MHz (OC) to reach the maximum 192GB, users can experience unstoppable speeds and seamless multitasking. Product Focusing on the implementation of a 10-phase VRM and the inclusion of advanced features like Intel Turbo Boost Max 3.0, Adaptive Boost Technology (ABT), and Thermal Velocity Boost (TVB); this motherboard is ready to handle everything you throw its way.

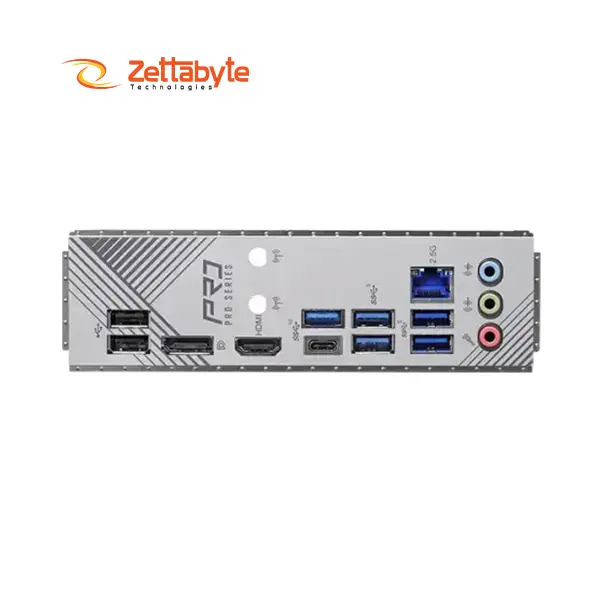

Filled with high-level connectivity and expansion, B760 Pro RS’s PCIe 5.0 capability enables next-gen graphics; while its M.2 slots deliver extremely high speeds with NVMe-based SSDs as well as a pair of SATA3 connectors with RAID 0/1/5/10 support. The Ultra-fast Dragon 2.5G LAN offers low latency and high bandwidth networking. This motherbaord offers a full array of ports such as HDMI 2.1, DisplayPort 1.4 and USB 3.2 Gen2 Type-C, as well as many fan headers with excellent smart fan level 1 O support and thermal performance. With the combination of the Realtek ALC897 Audio Codec and Nahimic Audio, you won’t be left searching for a sound card capable of powering your headphones.
Maintaining durability and user convenience are key factors with this motherboard with features such as: 10+1+1 power phase Dr MOS design, pre-installed I/O shield, as Rock easy mode and the post status Checker. It is ASRock Polychrome SYNC RGB compatible and has a great looking pattern. Whether you are building a brand new gaming PC, or you are looking to save some serious money compared to buying a new board, this ASRock motherboard has the stability, speed, and looks you need. Shop online!Buy ASRock B560M-HDV at best price of ৳7500 from ZettaByte TechnologiesVisit now!ZettaByte Technologies is the official distributor of ASRock motherboards and PC components in Bangladesh.
Are you Looking for a reliable Technology Store in Bangladesh?ASRock B760 Pro RS Versatile M.2 Slots Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the ASRock B760 Pro RS Durable 14-Phase Power Design Motherboard is 21,500৳. We have a huge collection of the MSI PRO B840-P WIFI Motherboard at the best price. Order today before the price increases!
